产品概述:
JE502机械密封
适用范围
密封腔压力:P≤1.6MPa
密封腔温度:t=-20℃~140℃
线 速 度:Vg≤13m/s
■单弹簧
■非平衡型密封
■橡胶波纹管
■符合DIN 24960标准
中国给排水设备行业推荐品牌
JE502机械密封
适用范围
密封腔压力:P≤1.6MPa
密封腔温度:t=-20℃~140℃
线 速 度:Vg≤13m/s
■单弹簧
■非平衡型密封
■橡胶波纹管
■符合DIN 24960标准

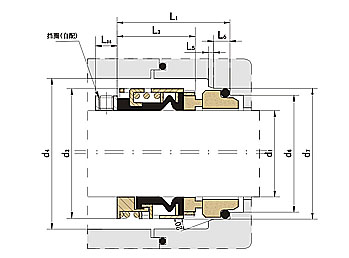

安装尺寸 | ||||||||||
规格/尺寸 | d1 | d3 | d4 | d6 | d7 | L1 | L3 | L5 | L6 | L38 |
(h6) | (max) | (min) | (H11) | (H8) | (±0.5) | |||||
502-14 | 14 | 24 | 26 | 21 | 25 | 35 | 23 | 1.5 | 4 | 5 |
502-16 | 16 | 26 | 28 | 23 | 27 | 35 | 23 | 1.5 | 4 | 5 |
502-18 | 18 | 32 | 34 | 27 | 33 | 37.5 | 24 | 2 | 5 | 7.5 |
502-20 | 20 | 34 | 36 | 29 | 35 | 37.5 | 24 | 2 | 5 | 7.5 |
502-22 | 22 | 36 | 38 | 31 | 37 | 37.5 | 24 | 2 | 5 | 7.5 |
502-24 | 24 | 38 | 40 | 33 | 39 | 40 | 26.7 | 2 | 5 | 7.5 |
502-25 | 25 | 39 | 41 | 34 | 40 | 40 | 27 | 2 | 5 | 7.5 |
502-28 | 28 | 42 | 44 | 37 | 43 | 42.5 | 30 | 2 | 5 | 7.5 |
502-30 | 30 | 44 | 46 | 39 | 45 | 42.5 | 30.5 | 2 | 5 | 7.5 |
502-32 | 32 | 46 | 48 | 42 | 48 | 42.5 | 30.5 | 2 | 5 | 8 |
502-33 | 33 | 47 | 49 | 42 | 48 | 42.5 | 30.5 | 2 | 5 | 8 |
502-35 | 35 | 49 | 51 | 44 | 50 | 42.5 | 30.5 | 2 | 5 | 8 |
502-38 | 38 | 54 | 58 | 49 | 56 | 45 | 32 | 2 | 6 | 10 |
502-40 | 40 | 56 | 60 | 51 | 58 | 45 | 32 | 2 | 6 | 10 |
502-43 | 43 | 59 | 63 | 54 | 61 | 45 | 32 | 2 | 6 | 12 |
502-45 | 45 | 61 | 65 | 56 | 63 | 45 | 32 | 2 | 6 | 12 |
502-48 | 48 | 64 | 68 | 59 | 66 | 45 | 32 | 2 | 6 | 12 |
502-50 | 50 | 66 | 70 | 62 | 70 | 47.5 | 34 | 2.5 | 6 | 12 |
502-53 | 53 | 69 | 73 | 65 | 73 | 47.5 | 34 | 2.5 | 6 | 12 |
502-55 | 55 | 71 | 75 | 67 | 75 | 47.5 | 34 | 2.5 | 6 | 12 |
502-58 | 58 | 78 | 83 | 70 | 78 | 52.5 | 39 | 2.5 | 6 | 14 |
502-60 | 60 | 80 | 85 | 72 | 80 | 52.5 | 39 | 2.5 | 6 | 14 |
502-63 | 63 | 83 | 88 | 75 | 83 | 52.5 | 39 | 2.5 | 6 | 14 |
502-65 | 65 | 85 | 90 | 77 | 85 | 52.5 | 39 | 2.5 | 6 | 14 |
502-68 | 68 | 88 | 93 | 81 | 90 | 52.5 | 39 | 2.5 | 7 | 14 |
502-70 | 70 | 89 | 95 | 83 | 92 | 60 | 45.5 | 2.5 | 7 | 14 |
502-75 | 75 | 96 | 104 | 88 | 97 | 60 | 45.5 | 2.5 | 7 | 14 |
502-80 | 80 | 104 | 109 | 95 | 105 | 60 | 45 | 3 | 7 | 14 |
